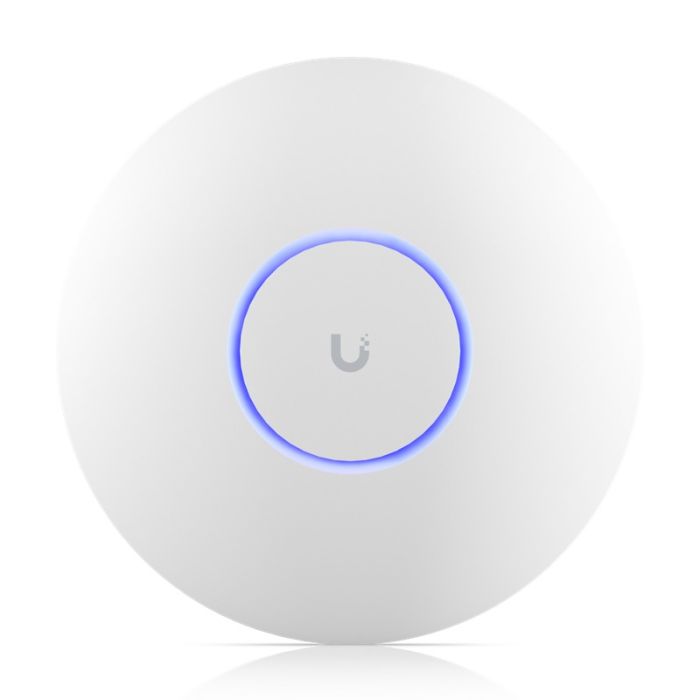

Ubiquiti UniFi U7-Pro – Tri-Band WiFi 7 Access Point for High-Density Indoor Environments
The UniFi U7-Pro is a high-performance tri-band wireless access point built to deliver WiFi 7 connectivity with enterprise-grade features, offering top-tier speed, capacity, and reliability for demanding indoor networks. Designed for ceiling or wall mounting, and engineered with sleek aesthetics and durability in mind, the U7-Pro is an ideal choice for modern offices, educational institutions, and high-density venues.
Leveraging the power of 802.11be (WiFi 7), the U7-Pro supports ultra-wide 320 MHz channels and offers high throughput across all three bands:
- 6 GHz: Up to 5.8 Gbps
- 5 GHz: Up to 4.3 Gbps
- 2.4 GHz: Up to 688 Mbps
With 2x2 MU-MIMO on each band and a total of 6 spatial streams, this AP supports 300+ clients, maintaining low-latency, high-performance wireless connectivity even in saturated environments.
Built for professional installations, the U7-Pro includes:
- A 2.5 GbE uplink port for high-speed backhaul
- PoE+ (802.3at) support for simplified single-cable deployments
- A Pro Mount kit for secure ceiling or wall mounting
- Polycarbonate and metal housing, combining sleek design with rugged build quality
The U7-Pro offers full support for advanced wireless features:
- 802.11r fast roaming, 802.11k/v BSS transition, and wireless meshing
- Band steering and client isolation
- Custom-branded captive portals, voucher/payment/password-based access
- Private Pre-Shared Key (PPSK) for secure, segmented user access
- WiFi scheduling, speed limiting, and RADIUS over TLS (RadSec)
- Dynamic VLAN assignment and external portal server support
It provides flexible coverage over 140 m² (1,500 ft²) with internal antennas rated at:
- 6 GHz: 5.8 dBi
- 5 GHz: 6 dBi
- 2.4 GHz: 4 dBi
Built to handle enterprise deployments, it operates in a temperature range from -30°C to 40°C and in humidity levels up to 95%, non-condensing. It also features a multi-color LED system indicator and complies with NDAA regulations, with full CE, FCC, and IC certification.
The UniFi U7-Pro is managed via the UniFi Network platform (v8.0.28 or later), offering centralized control, monitoring, and seamless integration with other UniFi devices. It’s ideal for any organization looking to future-proof its wireless infrastructure with the power and flexibility of WiFi 7.
| GTIN | 0810084693650 |
|---|---|
| Manufacturer | Ubiquiti |
| Model | U7-PRO |
| Color | White |
| Dimensions | 206 x 46 mm |
| Weight | 0.690000 |
| Warranty | 1 Year |
